Computer Vision for Manufacturing That Automates Visual Inspection and Detects Defects at Production Speed

Computer vision for manufacturing is the application of AI-trained image analysis models to automate visual inspection tasks on production lines. A computer vision system uses cameras positioned at inspection points on the production line, captures images of each product as it passes, and applies trained machine learning models to detect defects, verify dimensions, confirm assembly completeness, or classify product quality — at line speed and with consistent, objective results. The inspection outcome drives downstream actions: rejection actuation, QMS non-conformance creation, MES production records, or line stop signals. Unlike manual visual inspection, a computer vision system applies the same detection model to every unit without fatigue, shift variation, or subjective classification — and creates a complete image-based audit trail of every inspection decision.

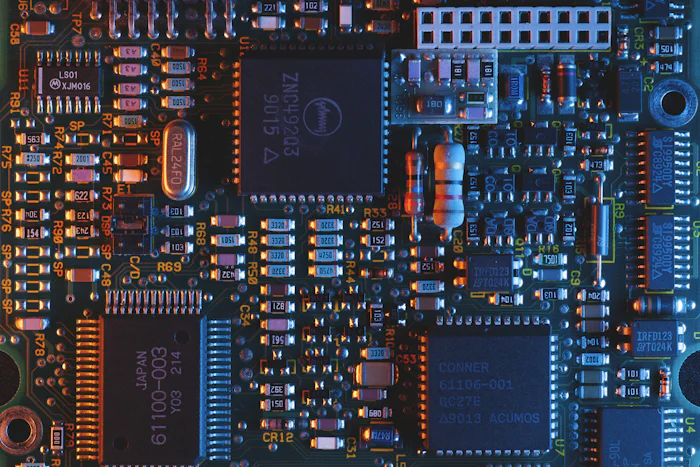

Computer vision systems can detect a wide range of defect types depending on the model trained and the imaging setup used. Surface defects on metallic, plastic, ceramic, and composite materials — scratches, cracks, porosity, inclusions, burrs, and surface roughness non-conformances — are reliably detected when the imaging setup provides sufficient contrast and resolution. Dimensional non-conformances — part geometry outside tolerance, missing features, incorrect hole positions — can be detected through measurement from calibrated camera images. Assembly defects — missing components, incorrect orientation, wrong part variants, incomplete fastening — are detected through trained models that understand the correct assembly state. Contamination, label placement errors, fill level variation, seal integrity, and print quality defects are also well-suited to computer vision inspection. The specific defect types that can be reliably detected for a given product depend on the defect characteristics, the imaging conditions, and the training data available — which is why defect specification and camera placement are addressed before model architecture decisions are made.

Well-designed computer vision inspection systems consistently outperform manual inspection in both detection rate and consistency — but the comparison depends on what is being measured. Manual inspection accuracy degrades significantly over a shift as inspectors experience fatigue: studies across manufacturing sectors show inspector detection rates declining by 20–40% over a standard shift, and classification consistency varying between inspectors for borderline defects. A trained computer vision model applies the same detection threshold to every unit consistently regardless of shift, time of day, or production volume. The practical accuracy of a deployed computer vision system depends on the training data quality, the imaging setup, and the calibration of detection thresholds for the specific defect types. A system trained on production-representative images and calibrated to the detection rate and false positive rate targets of the quality requirement will consistently outperform manual inspection for the defects it is trained to detect. The engineering challenge is not the AI capability — it is the training data, imaging setup, and threshold calibration that determine production performance.

Camera hardware and lighting selection depends on the inspection requirements: the product dimensions, the defect characteristics, the line speed, and the inspection environment. Camera resolution must be sufficient to image the smallest defect that needs to be detected at the available imaging distance. Frame rate must be sufficient to capture one or more images of each product at the maximum line speed. Lens selection determines field of view and depth of field. Lighting design is often the most critical factor in achieving consistent image quality — the type, angle, and colour of illumination determines whether defect features are visible with sufficient contrast for reliable detection. Structured illumination, dark-field, bright-field, and coaxial lighting setups each have different strengths for different defect types and surface characteristics. For edge deployment, the camera and lighting system is integrated with edge computing hardware — typically NVIDIA Jetson or similar platforms — for line-side inference without latency from cloud roundtrip. We specify camera hardware and lighting design as part of the defect specification and camera placement audit phase, based on the specific product, defect types, and line environment.

Integration with production line controls for automatic rejection is a critical part of every computer vision system deployment. When the vision system classifies a unit as defective, a signal is sent to the line control system — typically via PLC interface, digital I/O, OPC-UA, or MQTT — to trigger the rejection actuator at the appropriate point downstream. The timing of the rejection signal must account for the transport delay between the inspection point and the rejection actuator, and the signal must be reliable under production conditions including line speed variation. For line stop scenarios — where a specific defect type requires the line to be halted for investigation — the vision system sends a line stop signal to the PLC or SCADA system. We design and build the full integration layer between the vision system and production line controls, working with the existing PLC and SCADA environment to implement the rejection and alerting logic required by the quality procedure.

Training a computer vision model for manufacturing inspection begins with collecting representative images of the product and defect types — both defect examples and conforming product examples — captured under the imaging conditions that will be used in production. For supervised detection models, defect instances in images are annotated to identify the defect location, type, and severity. The model is then trained on this annotated dataset, with the training process optimising the model's ability to detect the specified defects while minimising false detections on conforming product. After initial training, the model is validated against a held-out test set of production images to measure detection rate and false positive rate before deployment. In production, model performance is monitored against confirmed quality inspection results, and the model is periodically retrained as new defect examples, product variants, or process changes generate new training data. The quality of the training dataset — its representativeness of the actual production population of defects and conforming parts — is the primary determinant of deployed model performance.

Yes. Multi-variant inspection is a common requirement on mixed-model production lines. A computer vision system can be configured to select the appropriate inspection model based on a product identifier signal from the line control system — a barcode scan, a PLC signal indicating the current production job, or an RFID read — and apply the correct defect detection model, dimensional tolerances, and inspection criteria for each variant. The system switches models between variants automatically, and the inspection results are logged with the variant identifier for traceability. Where product variants share common defect types but differ in geometry or surface characteristics, separate models or model variants trained for each product are used to maintain accuracy across the variant range. We design the variant management and model selection logic as part of the system architecture phase, based on the specific variant range, switchover frequency, and line control environment.

Integration with quality management systems and manufacturing execution systems is a standard part of computer vision system deployment. When a defect is detected, the vision system creates a non-conformance record in the QMS — including the inspection image, defect classification, defect location, and production context — automatically, at the point of detection, without operator intervention. This replaces the manual non-conformance recording that would otherwise depend on an inspector capturing and logging the defect correctly after the fact. Integration with MES connects inspection results to production records: each unit's inspection outcome is linked to the production job, work order, and shift, enabling quality performance analysis by job, process, and time period. For serialised products, the inspection result is linked to the unit serial number for full traceability through the production and despatch chain. We design the QMS and MES integration architecture as part of the system design phase, working with the existing system APIs, data models, and quality procedure requirements.

A computer vision model in production requires ongoing maintenance as product variants, tooling, materials, or process conditions change and introduce new defect types or new product appearances that were not represented in the original training data. We build model versioning and retraining pipelines as part of the deployment architecture: inspection images and confirmed quality outcomes from production are collected and stored, enabling periodic retraining of the model on expanded datasets that reflect current production conditions. When a new product variant is introduced or a process change generates a new defect type, the model is retrained on images that include the new variant or defect, validated against a representative test set, and deployed through the version management pipeline. Performance monitoring dashboards track detection rate and false positive rate in production, and alert when model performance degrades below configured thresholds — typically the first signal that a retraining cycle is needed. The model management infrastructure is designed and deployed as part of the initial engagement.

We follow a structured six-stage process: a free quality inspection and vision requirements discovery session to map defect types, product variants, line speed, lighting environment, and current inspection points; a defect specification and camera placement audit that defines the defect taxonomy, measurement requirements, and optimal camera positions and lighting for each inspection point; a vision system architecture and proof of concept phase that validates model performance on representative samples of each defect type before full development commitment; model development and production line integration covering AI model training, line control integration, QMS and MES connection, and calibration for the production environment; testing, validation, and inspection accuracy verification against production samples with threshold tuning and rejection integration testing; and deployment, monitoring, and model retraining capability covering production performance monitoring and the retraining pipeline for ongoing model maintenance. We deliver working inspection capability at each phase so you can validate detection performance against production samples throughout rather than only at the end of the engagement.
